◆ Description

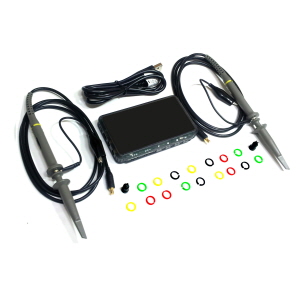

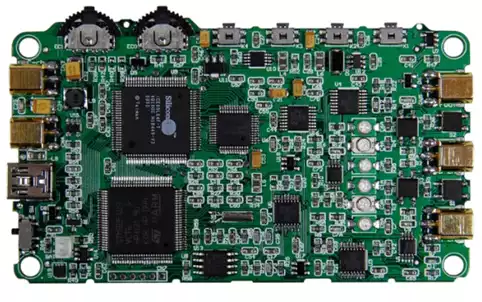

 DSO 203 is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32VCT6), providing 72Mhz analog bandwidth with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.

◆ Features

 - Pocket sizeand light weight

 - Two 72Mhzanalog channels and two digital channels

 - SignalGenerator

 - AutoMeasurement

 - VariousTriggering Option

 - Easywaveform storage

 - Firmwareupgrade

 - Userapplications

 - Open source

◆ Specification

 - Analogchannel * 2 : [CH_A] [CH_B];

 - Digitalchannel * 2 : [CH_C] [CH_D];

 - VerticalScale: 20mV-10V/div (x1 probe);

 - Verticalsolution: 8 bit ;

 - Inputcoupling: AC/DC ;

 - Max inputvoltage: 80Vpp (x1 probe);

 - Storage: 4Kper channel

 - Softwaretrigger type: edge, pulse, level (to be added)

 - Hardwaretrigger type: edge

 - Triggersource: CH1/CH2/EXT

 - Test Signalgenerater: 10Hz to 1Mhz

 - Storage:internal 2MB USB disk

 - Automeasure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty

 - Cursormeasurement: Level, Voltage

 - Displaymode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2

 - Samplingmode: real time

 - Samplingrate: 1kSa/s - 72MSa/S

 - Power: Lipobattery

 - Dimension:98 * 60 * 14.5

 - Weight: 80g (withoutbattery)
