◆ Feature :

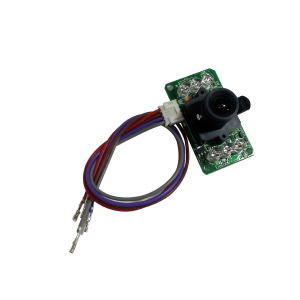

 - Infrared JPEG Color Camera Serial UART LS-Y201-TTL-Infrared
 - generation serial port camera module
 - pictures using the serial port
 - integrated into existing design

◆ Description :
 - roduct Description
 - Model: LS-Y201-TTL-INFRARED
 - LS-Y201-TTL-INFRARED is LinkSprite's new generation serial port camera module. It can captures high resolution pictures using the serial port. LS-Y201 is a modular design that outputs JPEG images through UART, and can be easily integrated into existing design.
 - The infrared feature has an built-in light sensor to sense the ambient light and will automatically turn on the infrared LED.

◆ Specification:
 - VGA/QVGA/160*120 resolution
 - Support capture JPEG from serial port
 - Default baud rate of serial port is 38400
 - DC 3.3V or 5V power supply
 - Size 32mm X 32mm
 - Current consumption: 80-100mA
 - The pin near C03 is AV output pin, which is an analog output pin.
 - Application
 - Different image capture systems
 - Environmental monitoring
 - Industry monitoring
 - Medical equipment
 - Video phone
 - Security
 - Vehicle based GPS
 - Technical support
 - User Manual
 - Evaluation Software
 - Ls Open Source Code for X86
 - Arduino Sample code
 - Net micro framework source code
 - Package: 1 x Infrared JPEG Color Camera Serial UART (TTL level)
